VMV Type STD16&STD42 thermodynamic steam trap

VMV Type--Thermodynamic Steam Trap

Features and Benefits

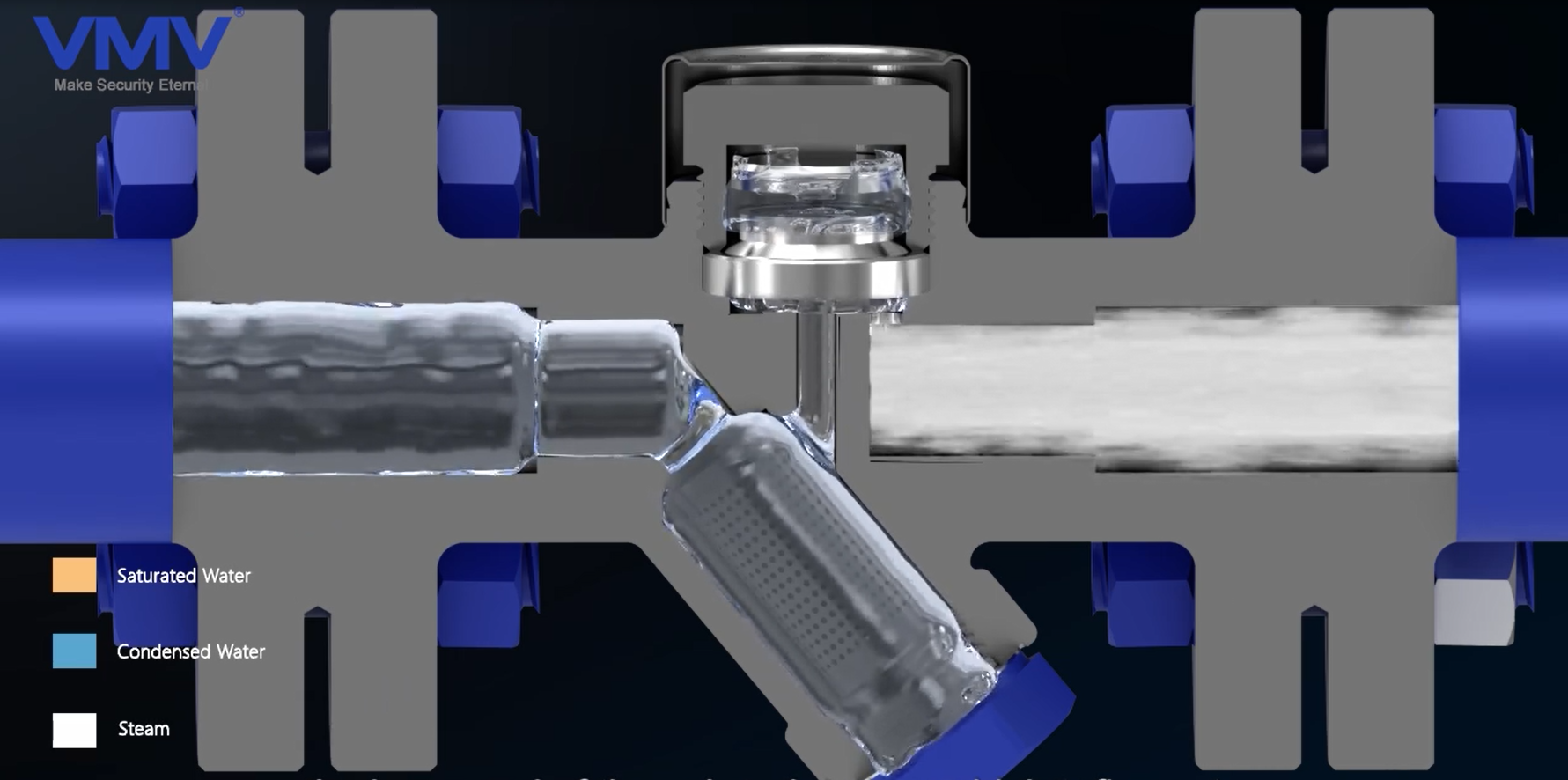

Operates on the difference in flow rates of steam and condensate

Valve seats and disc martensitic stainless steel hardfaced: valve seats are martensitic stainless steel  hardfaced to increase their resistance to the high degree of wear through velocity of flow, dirt and scale.

Silent operation – no violent line shocks.

All-position installation simplifies piping layout.

The valve body adopt A105 (15CrMo) material, The design fully considers corrosion allowance, minimum shell wall thickness, pressure and temperature grades.

Stainless steel temperature protection cover: The stainless steel insulation cover ensures that the transformer room is not affected by the outdoor environment,prevent runaway and action valve opening times.

Built-in filter:stainless steel screens are integral in all three models to protect the trap operating mechanism from damage by dirt or scale. No extra fittings or installation costs are required.

Positive condensate drainage for process work.
