SKT16 Thermostatic (film box) Steam Trap

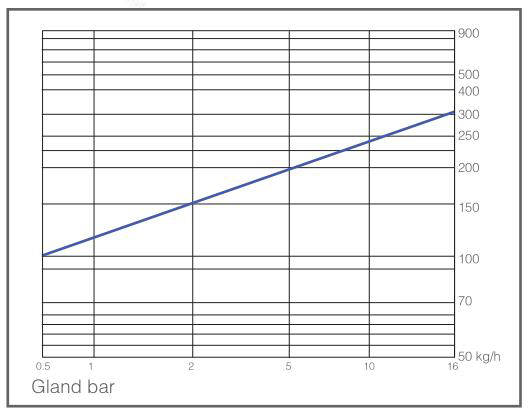

SKT16 Displacement Curve


 Applications
1. The steam transmission pipeline guide.
2. Small heat exchanger and kettle.
3. Heating system.
4. The small coil is heated by air.

 Material

Cap

A105

Valve Body

WCB

Seat

Stainless Steel

Disc

Stainless Steel

Other Internals

Stainless Steel

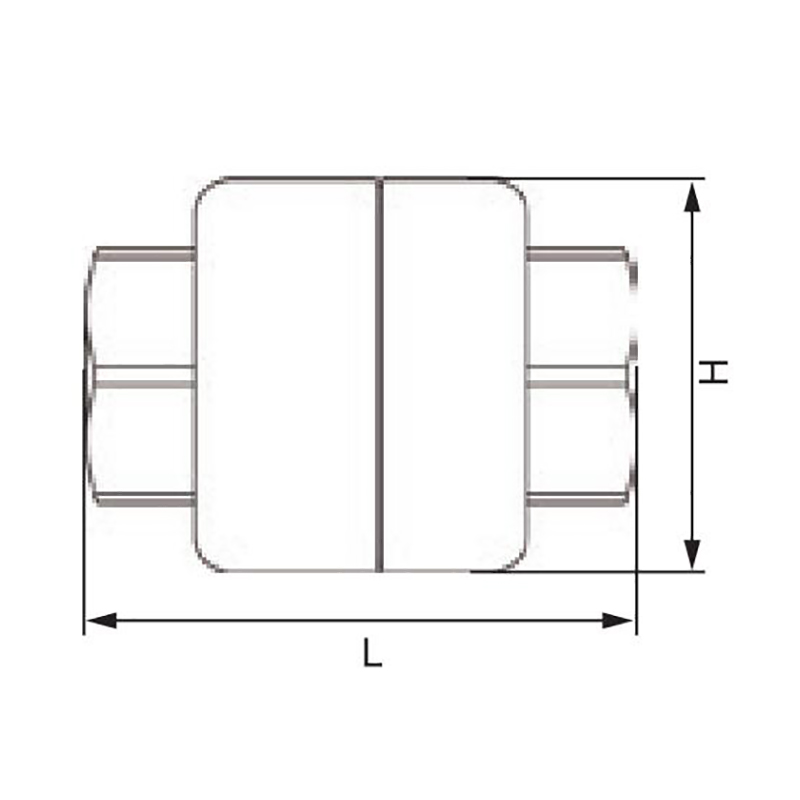

Data Size Table

Type

Conn

DN

PN

Working

Pressure

MPa

Temperature°C

Pressure

MPa

Diameter (mm)

U.W

Kg

L

H

SKT 16T

Thread

15-25

16

0.05-1.6

350/1.57

75

55

1

SKT 16F

SW

15-25

16

0.05-1.6

350/1.57

120

125

2.8




Structural features
1. The working principle of the Film Box Steam Trap is dependent on the
temperature difference between vapor and liquid.
2. The valve body and bonnet are made of 304 material.
3. The disc and valve seat are made of special stainless steel. Through heat treatment, the disc hardness is as high as HRC55, which improves the service life of the trap.
4. Imported Film Box ensures precise temperature control.
5. The closing system adopts high-precision plane sealing structure.
6. Built-in flter makes the trap work in a clean environment.
7. The back pressure rate is as high as 50% or more.
