SBT20 Inverted Bucket Steam Trap

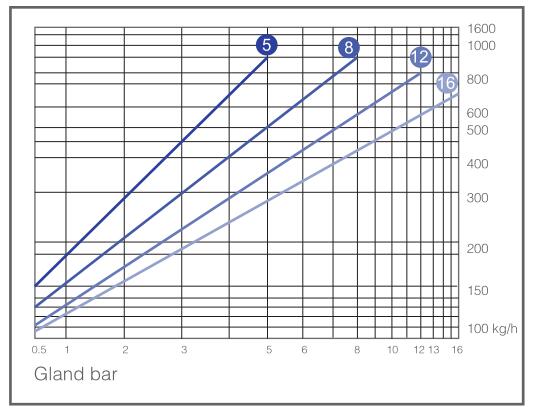

SBT20 Displacement Curve


Applications
1. Small heat exchanger, kettle and sub-cylinder.
2. Coil air heating, drying equipment,vulcanizing equipment, etc.
3. Process heating system (storage tank,oil tank, weight).

Material

Cap

A105

Valve Body

WCB

Seat

Stainless Steel

Disc

Stainless Steel

Other Internals

Stainless Steel

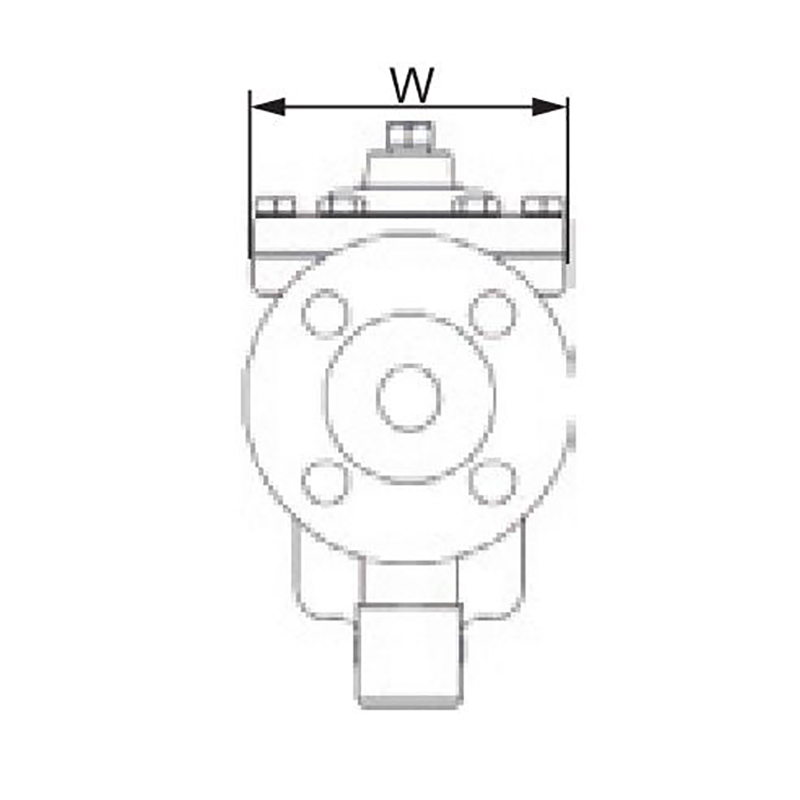

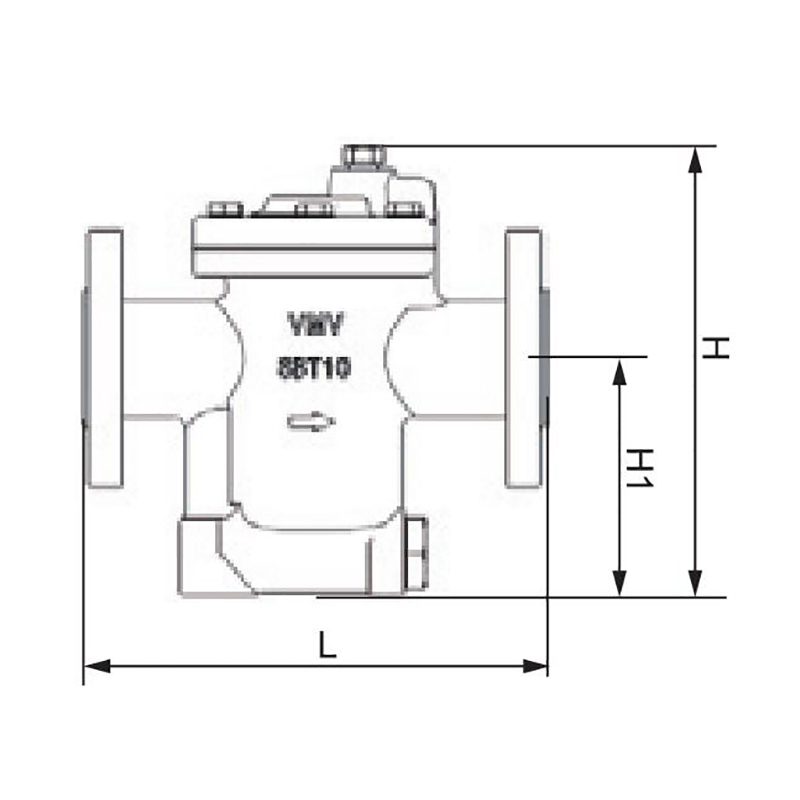

Data Size Table

Type

Conn

DN

PN

Working

Pressure

MPa

Temperature°C

Pressure

MPa

Diameter (mm)

U.W

Kg

L

H

H1

W

SBT 20T

Thread

15-25

25

0.05-1.6

400/1.57

170

245

133

140

8

SBT 20W

SW

15-25

25

0.05-1.6

400/1.57

170

245

133

140

8

SBT 20F

RF

15-40

25

0.05-1.6

400/1.57

230

245

133

140

10.5





Structural features
 1. The working principle of the inverted bucket steam trap is based on the difference of vapor and liquid density.
2. The valve body and bonnet are made of forged steel/cast steel.
3. All internal parts are made of stainless steel, and the wear allowance has been fully considered in the design of movable parts, which improves the service life of the trap.
4. U-shaped flow channel design realizes water sealing effect without leaking steam.
5. Patented flexible closing system, no steam leakage.
6. Equipped with a water-proof device so that the fluid entering the valve body will not produce water-hammer.
7. Built-in check valve is suitable for superheated steam environment.
8. Built-in filter makes the water valve work in a clean environment.
9. Choose different displacement curves according to the pressure.
10. The back pressure rate is as high as 90%.
11. The screw plug can drain the condensed water after stopping to prevent damage to the trap due to freezing or low temperature.
