SHT16/32 Thermostatic (bimetal) Steam Trap

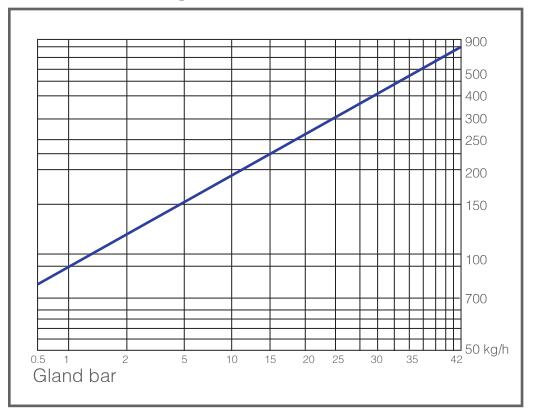

SHT16/32 Displacement Curve


 Applications
1. The steam transmission pipeline guide.
2. Small heat exchanger and kettle.
3. Heating system.
4. The small coil is heated by air.

Material

Cap

A105

Valve Body

A105

Seat

Stainless Steel

Disc

Stainless Steel

Other Internals

Stainless Steel


Data Size Table

Type

Conn

DN

PN

Working

Pressure

MPa

Temperature°C

Pressure

MPa

Diameter (mm)

U.W

Kg

L

H

H1

W

SHT 16/32T

Thread

15-25

63

0.05-3.2

400/1.57

90

145

68

55

1.8

SHT 16/32W

SW

15-25

63

0.05-3.2

400/1.57

90

145

68

55

1.8

SHT 16/32F

RF

15-25

63

0.05-3.2

400/1.57

150

145

68

55

4




Structural features
1. The working principle of the the bimetal steam trap is dependent on the temperature difference between vapor and liquid.
2. The valve body and bonnet are made of 304 material.
3. The disc and valve seat are made of special stainless steel. Through heat treatment, the disc hardness is as high as HRC55, which improves the service life of the trap.
4. Imported bimetallic sheet to ensure precise temperature control.
5. The closing system adopts high-precision plane sealing structure.
6. Built-in filter makes the trap work in a clean environment.
7. The back pressure rate is as high as 50% or more.
