SBT10 Inverted Bucket Steam Trap
The working principle of the inverted bucket steam trap is based on the difference of vapor and liquid density. The valve body and bonnet are made of cast steel. All internal parts are made of stainless steel,and the movable parts are fully designed Considering the wear allowance,the service life of the trap is improved.
- Category : Inverted Bucket Steam Trap
- Email : vmv@steamvalves.com
- Phone : +86-577-67978269
Applications
1.Guide for steam transmission pipeline.
2.Small heat exchanger and kettle.
3.Heat tracing system (high back pressure recovery system)
4.coil air heating
Material
|
Cap |
A105 |
|
Valve Body |
WCB |
|
Seat |
Stainless Steel |
|
Disc |
Stainless Steel |
|
Other Internals |
Stainless Steel |

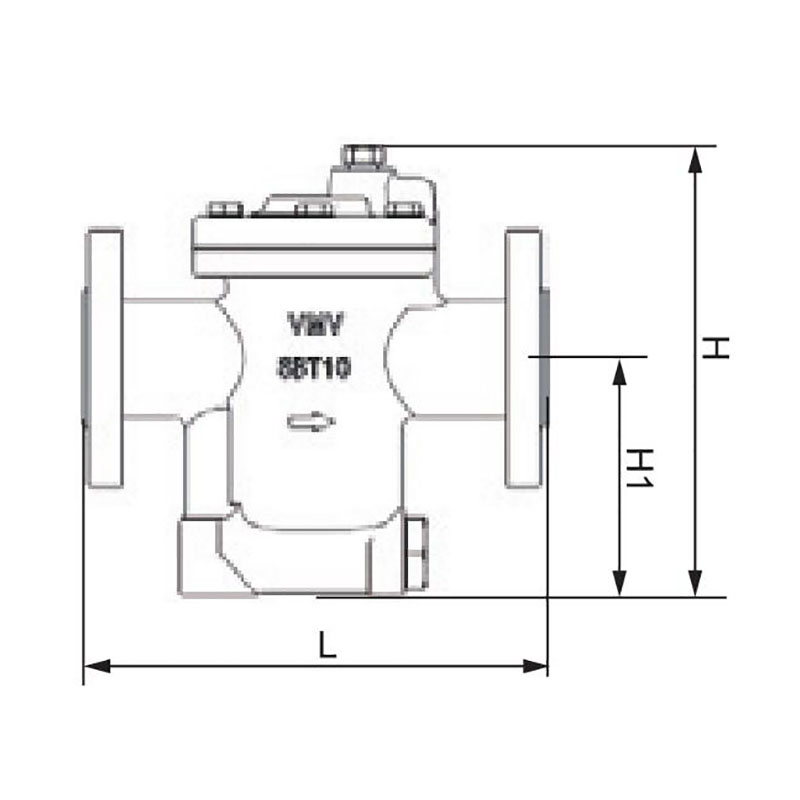

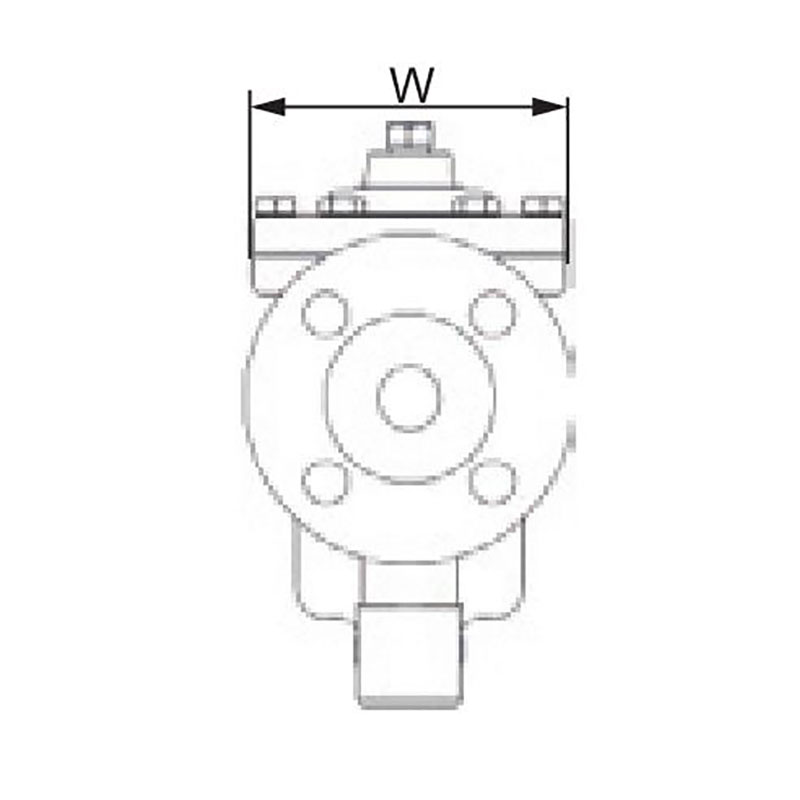

Data Size Table
|
Type |
Conn |
DN |
PN |
Working Pressure MPa |
Temperature°C Pressure MPa |
Diameter (mm) |
U.W Kg |
|||
|
L |
H |
H1 |
W |
|||||||
|
SBT 10T |
Thread |
15-25 |
25 |
0.05-1.6 |
400/1.57 |
130 |
185 |
38 |
100 |
4 |
|
SBT 10W |
SW |
15-25 |
25 |
0.05-1.6 |
400/1.57 |
130 |
185 |
38 |
100 |
4 |
|
SBT 10F |
RF |
15-25 |
25 |
0.05-1.6 |
400/1.57 |
190 |
185 |
38 |
100 |
6.5 |
1. The working principle of the inverted bucket steam trap is based on the difference of vapor and liquid density.
2. The valve body and bonnet are made of cast steel.
3. All internal parts are made of stainless steel,and the movable parts are fully designed Considering the wear allowance,the service life of the trap is improved.
4. U-shaped runner design to achieve water sealing effect without leaking steam.
5. The patented flexible closing system has no steam leakage.
6. Equipped with a water-proof device so that the fluid entering the valve body will not produce water-hammer.
7. Built-in check valve is suitable for superheated steam environment.
8. Built-in filter makes the trap work in a clean environment.

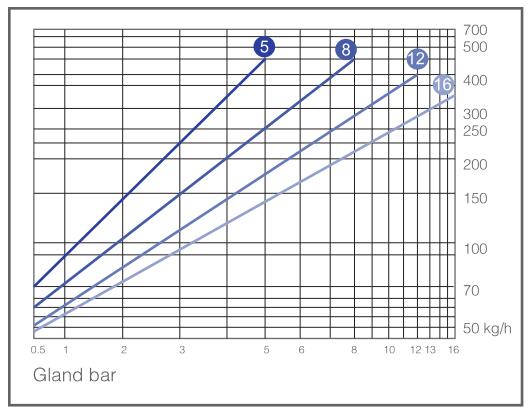

9. Choose different displacement curves according to the pressure.
10. The back pressure rate is as high as 90%.
11. After stopping,the screw plug can drain the condensed water to prevent damage to the trap due to freezing at low temperature.
