SFT20 Ball Float Steam Trap

E-mail

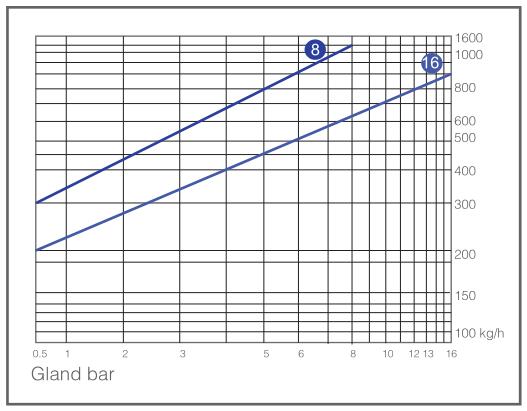

SFT20 Displacement Curve

Applications
1. Small heat exchanger, kettle and sub-cylinder.
2. Coil air heating, drying equipment, vulcanizing equipment, etc.
3. Process heating system (storage tank,oil tank heavy oil pipeline).

Material

Cap	A105
Valve Body	WCB
Seat	Stainless Steel
Disc	Stainless Steel
Other Internals	Stainless Steel

Data Size Table

Type	Conn	DN	PN	Working Pressure MPa	Temperature°C Pressure MPa	Diameter (mm)				U.W Kg
Type	Conn	DN	PN	Working Pressure MPa	Temperature°C Pressure MPa	L	H	H1	W	U.W Kg
SFT 20T	Thread	15-25	25	0.05-1.6	400/1.57	150	175	75	227	8.5
SFT 20W	SW	15-25	25	0.05-1.6	400/1.57	150	175	75	227	8.5
SFT 20F	RF	15-25	25	0.05-1.6	400/1.57	210	175	75	260	11

Structural features
1. The working principle of the lever float steam trap is based on the density of vapor and liquid.
2. The valve body and bonnet are made of cast steel/forged steel.
3. All internal parts are made of stainless steel, and the wear allowance has been fully considered in the design of movable parts,which improves the service life of the trap.
4. Special flow channel design to achieve zero water hammer.
5. Patented flexible closing system and micron-level precision closing system double guarantee no steam leakage and long service life.
6. Built-in air exhaust valve to prevent steam lock.
7. The independent filter makes the trap work in a clean environment.
8. Choose diferent displacement curves according to the pressure.
9. The back pressure rate is as high as 95%
10. The drain plug is designed at the bottom of the trap to ensure that the internal water is removed after stopping,to prevented foating ball from freezing in cold weather.
