SBT11TVS Inverted Bucket Steam Trap

E-mail

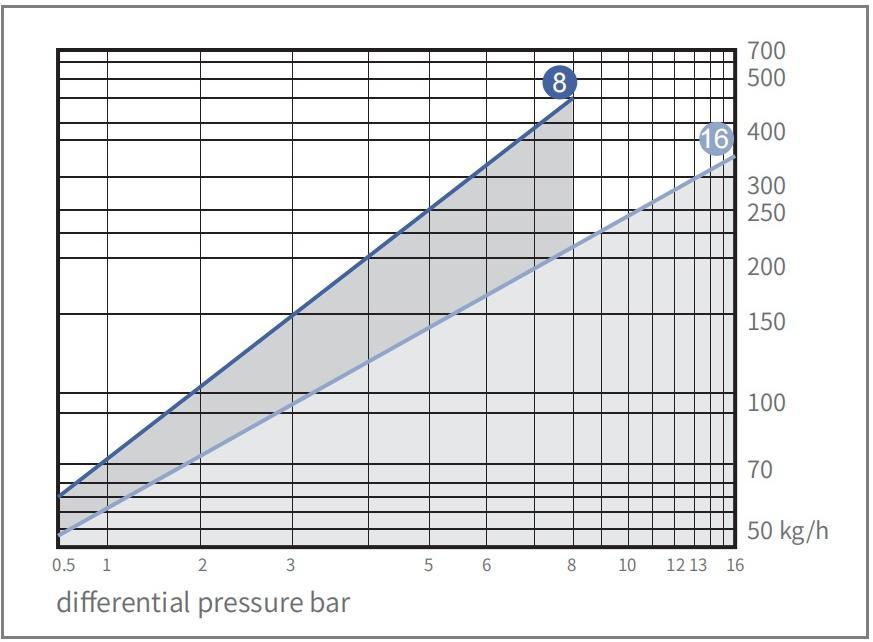

SBT20 Displacement Curve

Applications
1. Small heat exchanger, kettle and sub-cylinder.
2. Coil air heating, drying equipment,vulcanizing equipment, etc.
3. Process heating system (storage tank,oil tank, weight).

Material

Cover	F304/F316
Valve Body	F304/F316
Seat	Stainless Steel
Disc	Stainless Steel
Other Internals	Stainless Steel

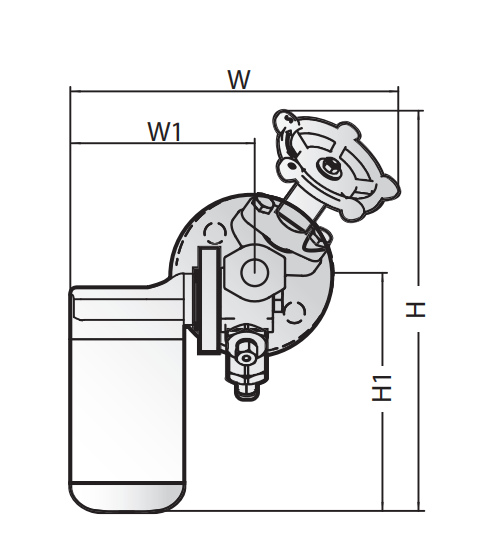

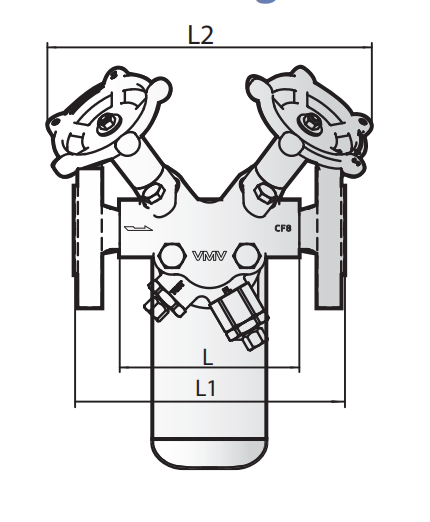

Data Size Table

Type

Max.Working

Pressure

MPa

Temperature°C

Pressure

MPa

Diameter (mm)

NW.Kg

SBT11TVS

15-25

1.6

350/1.62

200

220

132

176

150

4.2kg

Structural features

1.The valve body and valve cover are all made of stainless steel.
2.All internal parts are made of stainless steel,and the wear allowance has been fully considered in the design of moving parts,which improves the service life of the trap.
3. Internally installed U-shaped stainless steel pipe flow channel design to achieve water sealing effect.
4. Internally installed U-shaped stainless steel pipe flow channel design to achieve water sealing effect.
5. External filter connector, so that the trap works in a clean environment.
6. The back pressure rate is as high as 90% or more.
