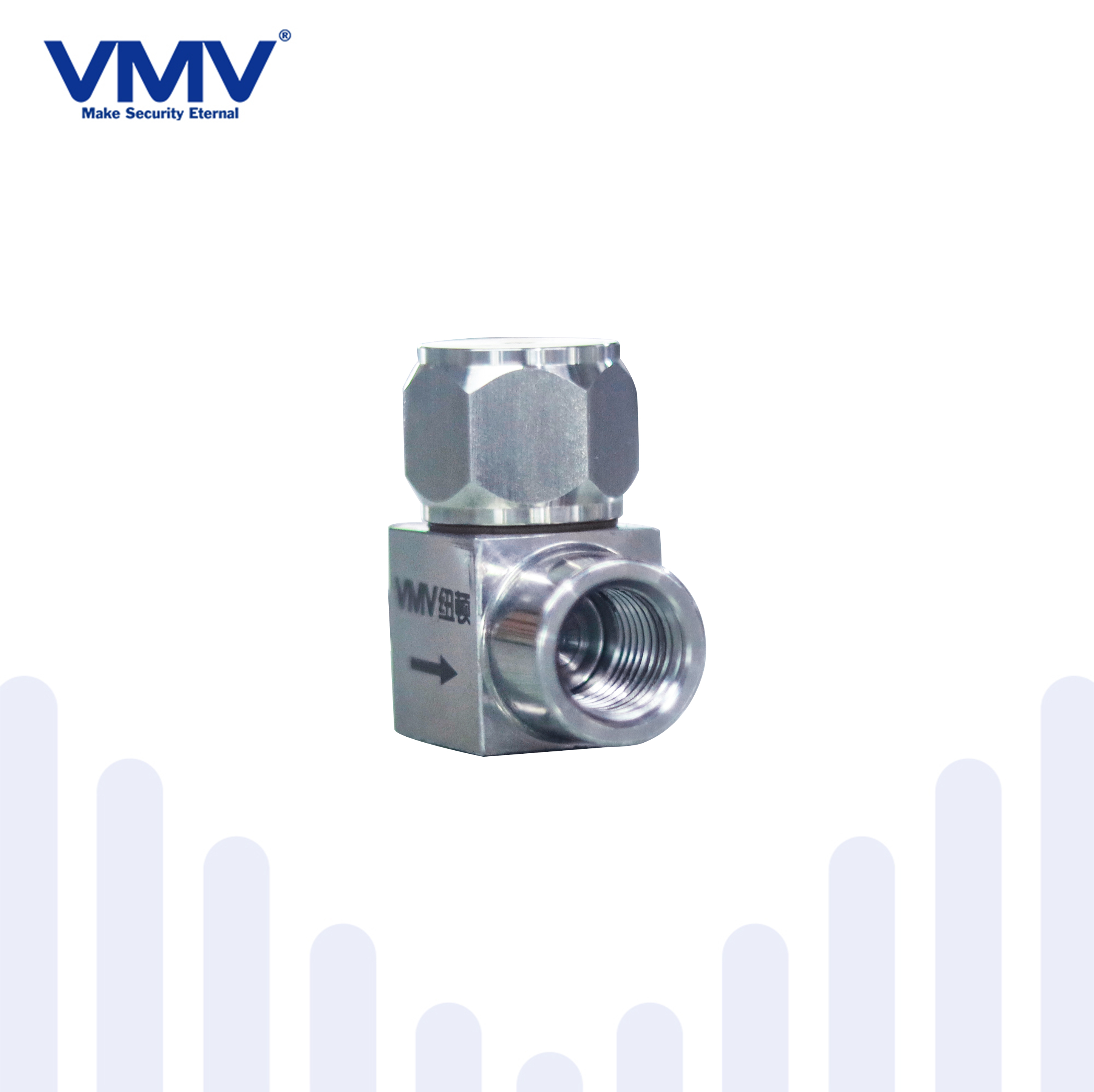

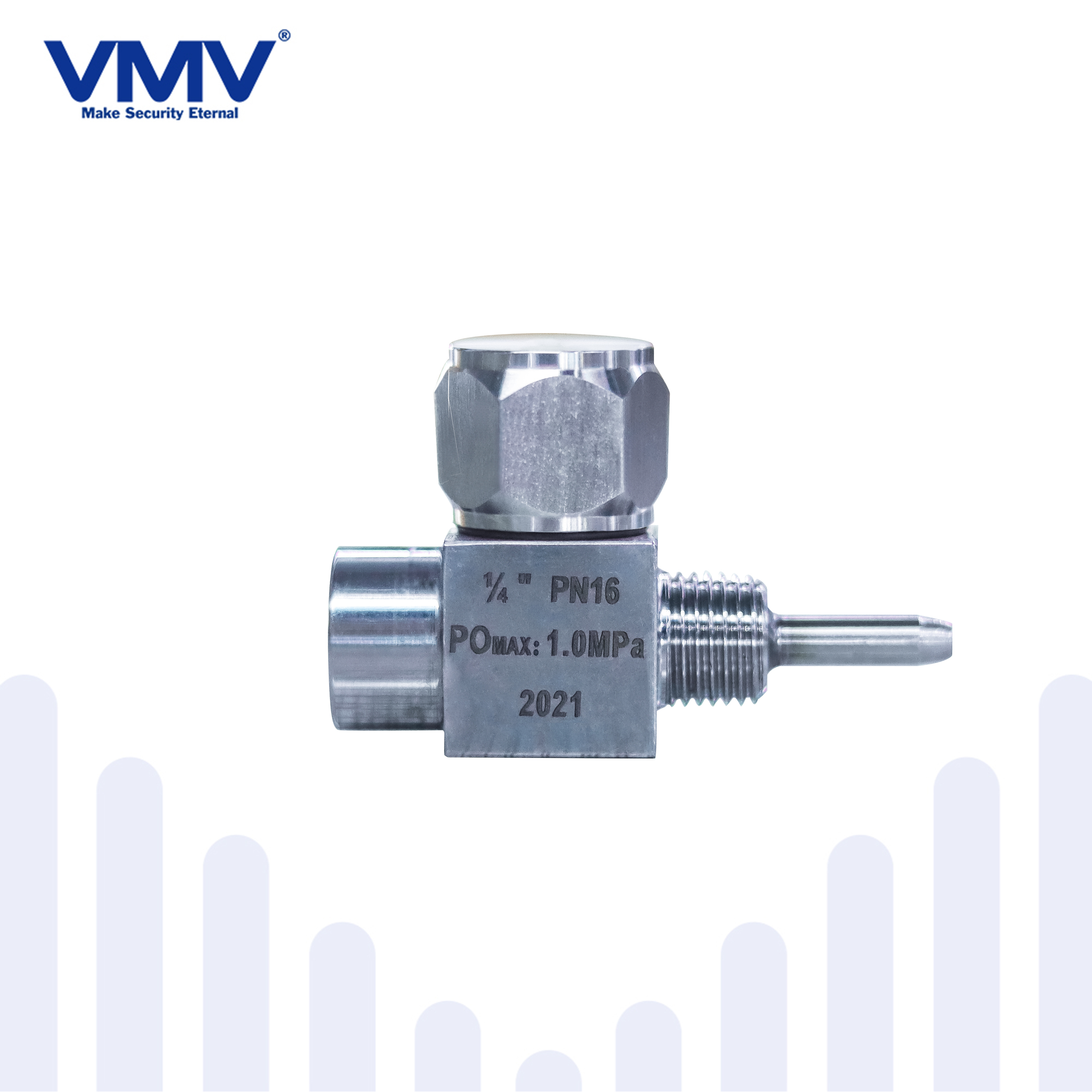

STD01 Thermodynamic Steam Trap

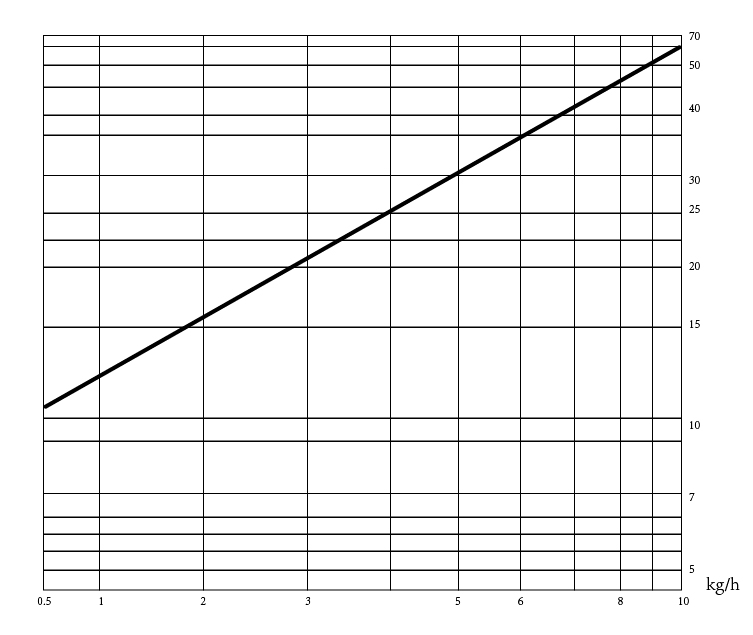

STD16 Displacement Curve


Material

Cap
Stainless Steel
Valve Body Stainless Steel
Disc Stainless Steel
Data Size Table

Type
Conn
Specifications
PN
Working Pressure Mpa
Temperature/Pressure Mpa
Diameter(mm)
Weight Kg
L H W
STD01 Thread 1/4” 16 0.05-1.6 250/1 42 34 18 115





1. The working principle of the thermodynamic steam trap is to rely on the difference of vapor and liquid density.

2. The valve clack and valve seat are made of special stainless steel. Through heat treatment and aging treatment, they are invariable and wear-resistant under high temperature and high pressure, which improves the service life of the trap.

3. The fluid channel of the internal structure is designed strictly in accordance with Bernoulli equation, and the structure is reasonable.

4. Back pressure rate is as high as 80%.
